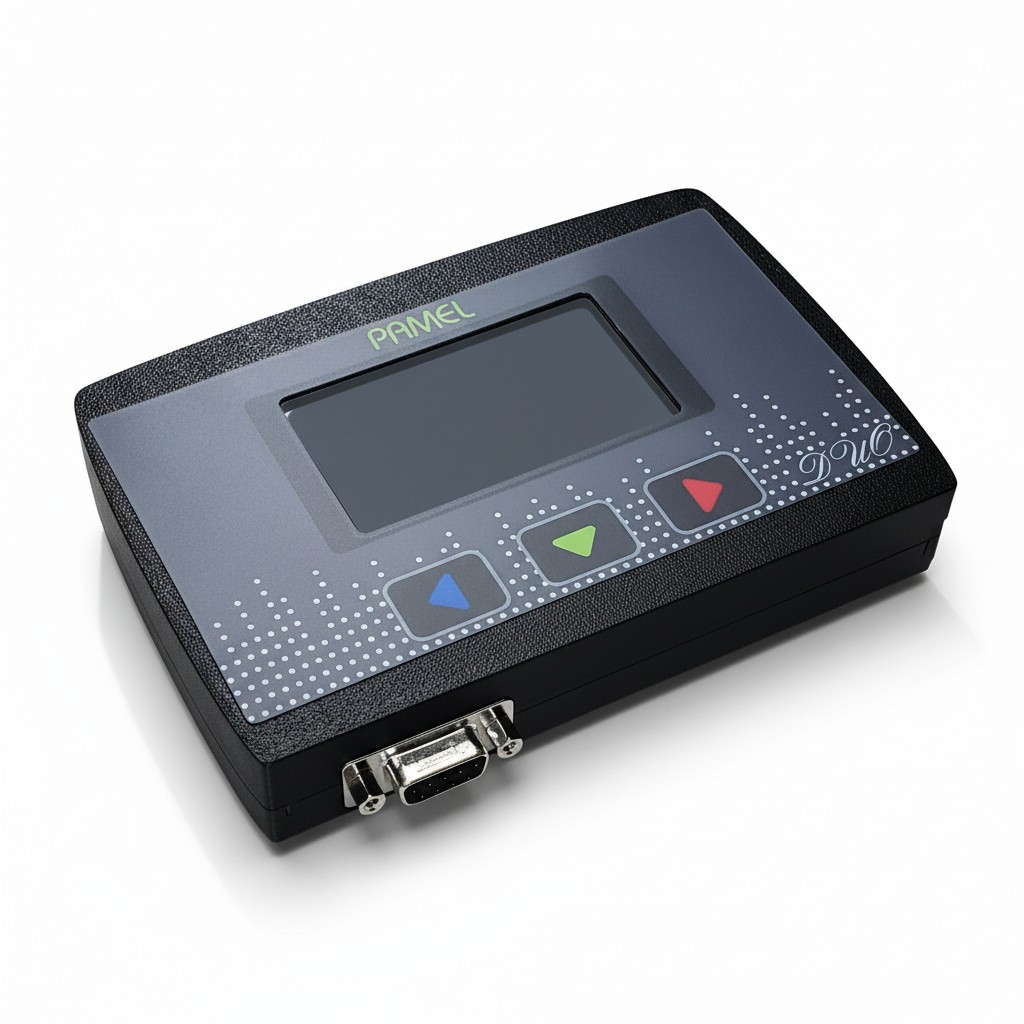

PSW2 is used to control electric smokehouses.
Using the buttons, the user can adjust the temperature to which he is aiming. The current temperature setting is displayed on the graphic LCD.

In addition, the user can regulate fan speed and smoke generator power.

Go to full description

€127.49

Wybierz wariant produktu:

Individual variants may differ in price

Quantity

szt.

Availability:

duża ilość

Shipping time: 24 godziny

PSW2 is used to control electric smokehouses
Using the buttons, the user can adjust the temperature to which he is aiming. The current temperature setting is displayed on the graphic LCD.

In addition, the user can regulate fan speed and smoke generator power.

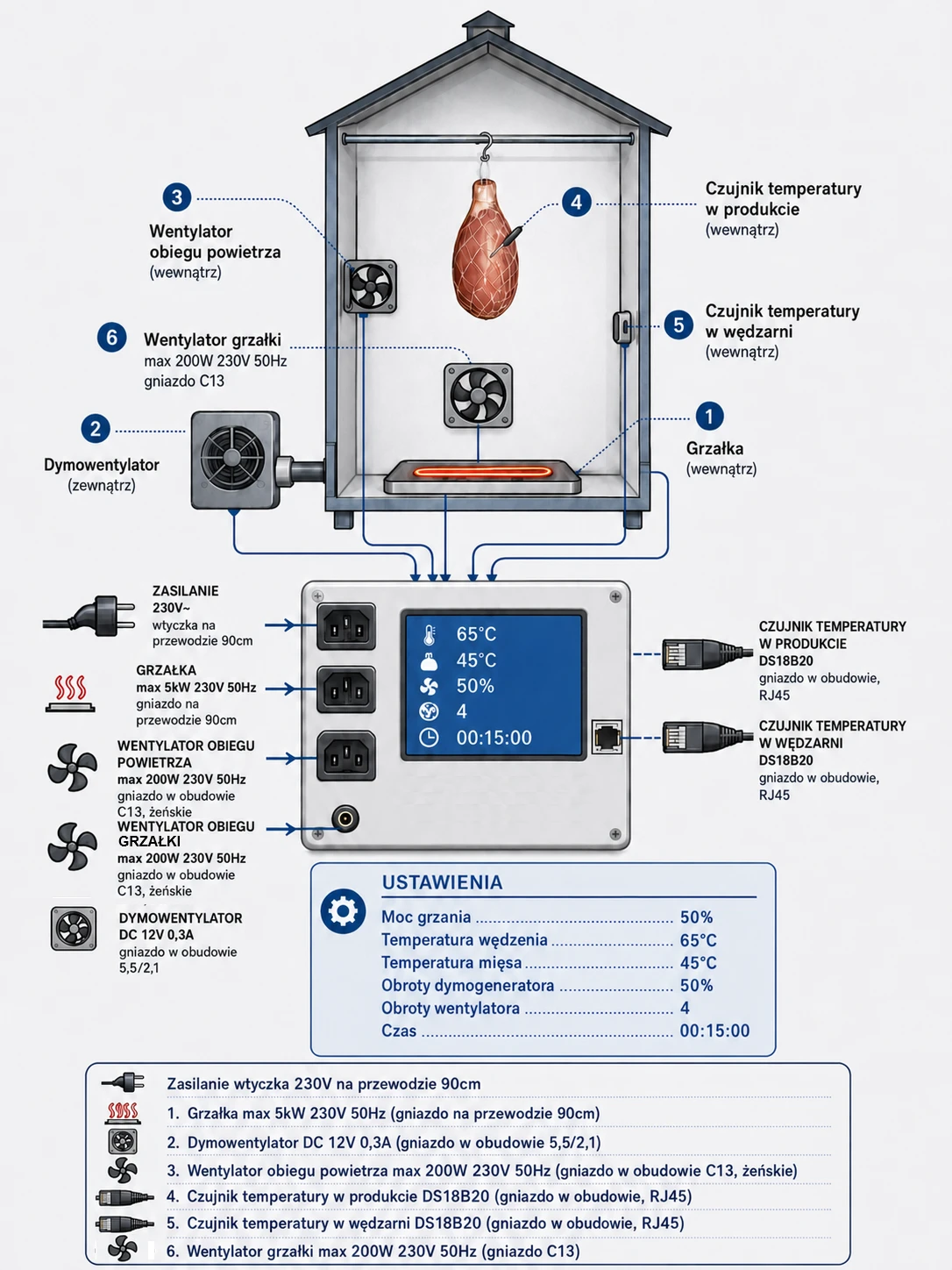

The device can control the curing (smoking) process.

The device can be equipped with a temperature probe (or two) so that it can maintain a constant temperature or limit its maximum value (protection)
A second probe can be connected to the device. The second probe, in addition to measuring the second temperature, allows the device to end. This is particularly useful, e.g. when the second probe is placed in the meat during smoking and the process is to end when the temperature is reached, e.g. "Ta = 50" degrees

Additional output can be used to:

- fan control

- smoke generator control

Advantages
Easy assembly
Readable graphic display
Set minimum power
Set maximum power
Ease of use

Warranty
60 months

Technical data
Supply voltage: 230V / 50Hz +/- 10%
Power regulation resolution: 1%
Power adjustment range: 0-100%
Temperature adjustment range: 10-115 degrees
Temperature resolution: 0.1 degree
The maximum adjustable value of the heater power: 4kW
Maximum power consumption: 1.5W
Overcurrent protection: YES
Thermal protection: YES
Cooling: forced (built-in fan)

Due to the universality of the probe and cables are not included. Please purchase them separately.
