PRM3F DUO – up to 16,5 kW and separate control panel

The DUO version separates the user panel from the power module. This keeps operation convenient, while the power section can be located closer to the heating elements, probes and controlled components.

3 × 5,5 kWup to 16,5 kW0–100%0–2 probesgraphic LCD

The most important information

One, two or three phases

The controller can operate in single, two, or three-phase mode. There is no requirement to use all three phases.

Power and temperature

Without probes, the PRM3F DUO regulates power. With probes, it can maintain temperature, limit its maximum value, or terminate the process when the second probe temperature is reached.

Automatic processes

The controller can handle distillation, food smoking and brewing. An additional output can be used, for example, for a valve, agitator, pump or contactor.

Features and applications

maximum adjustable power 3 × 5,5 kW (3 × 230 V), total up to 16,5 kW
power adjustment range 0–100%
Power resolution 0,25% or 1% – user-settable
temperature control range 10–115°C
temperature resolution 0,025°C
Supports 0, 1 or 2 probes with RJ45 connectors
graphic LCD display connected to the main unit
LCD image rotation by 180°
adjustable minimum and maximum power
modes for distillation, food smoking and brewing
thermal protection and forced cooling
maximum power consumption of the controller 2,5 W

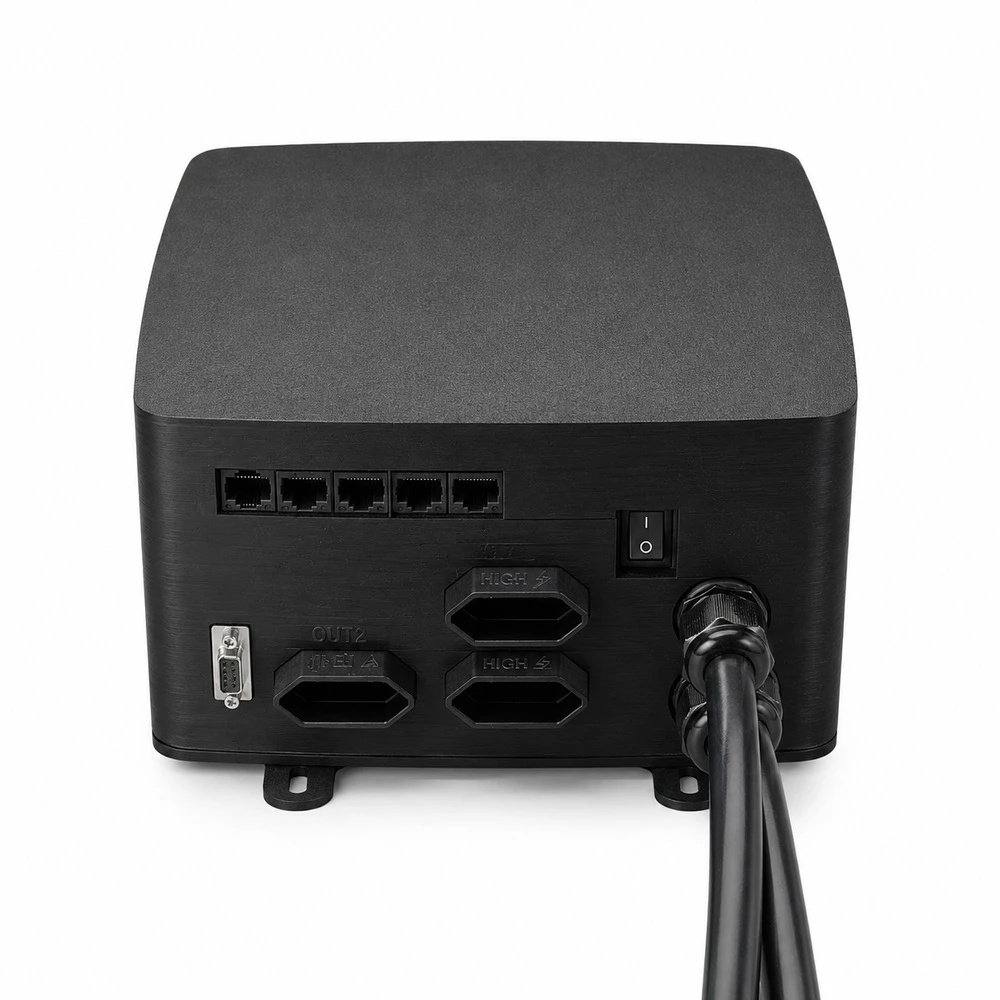

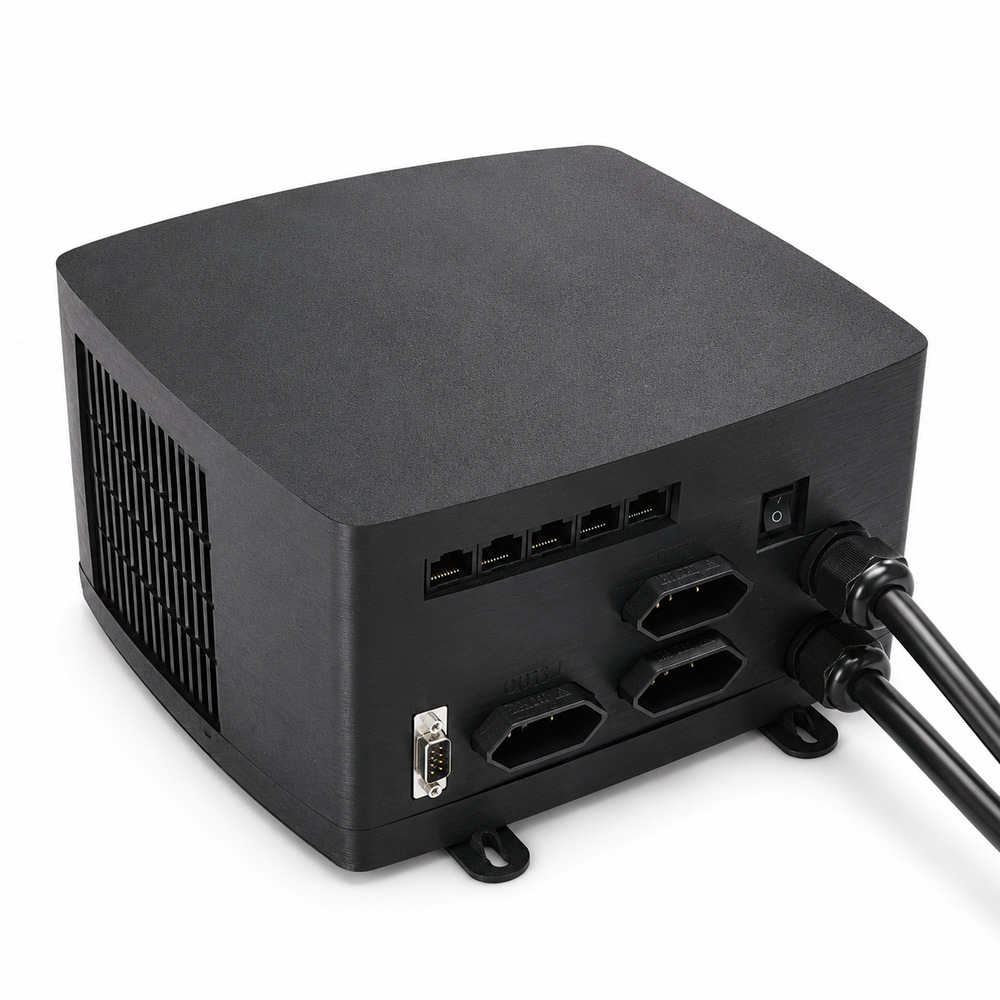

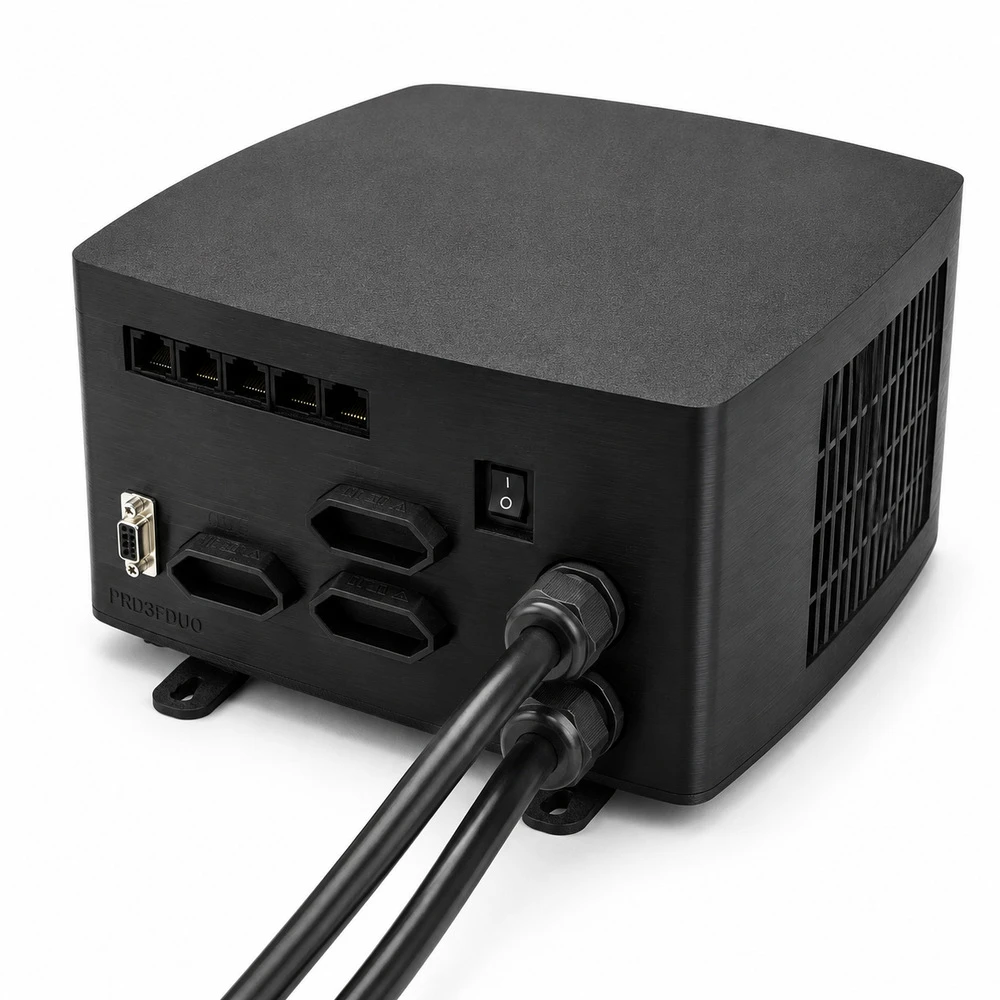

Product photos

Technical data

Power supply	230 V / 50 Hz ±10%; multiphase system 3 × 230 V
Maximum power	3 × 5,5 kW, total up to 16,5 kW
Power range	0–100%
Power resolution	0,25% or 1%
Temperature range	10–115°C
Temperature resolution	0,025°C
Probes	0–2, RJ45
Power consumption	max 2,5 W
Cooling	forced, built-in fan

Important: Before installing or replacing an element, check its compatibility with the specific installation or controller model and adhere to the current documentation.
