TERMO8G - 8 CHANNEL THERMOMETER

Go to Product feedback

The PAMEL thermometer is used to measure temperature. The user can connect up to 8 probes.
Using the pulser, the user can set an alarm for each probe. Alarm for lowering and exceeding the temperature. After exceeding this temperature, an acoustic signal will sound and a sign will appear on the display indicating which probe has reached too low or high temperature.

Go to full description

€46.98

Wybierz wariant produktu:

Individual variants may differ in price

Wbudowany akumulator

Nie

Tak (+€16.54)

Selecting this option changes the price: (+€16.54)

Interfejs

Brak

USB (+€14.18)

Selecting this option changes the price: (+€14.18)

RS485 (+€11.81)

Selecting this option changes the price: (+€11.81)

Quantity

szt.

Availability:

duża ilość

Shipping time: 24 godziny

Description
The PAMEL thermometer is used to measure temperature. The user can connect up to 8 probes.
Using the pulser, the user can set an alarm for each probe.

Alarm for lowering and exceeding the temperature. After exceeding this temperature, an acoustic signal will sound and a sign will appear on the display indicating which probe has reached too low or high temperature.

The thermometer can be equipped with a remote alarm module.
It consists of two parts. The first is permanently installed in the controller.
The second is the receiver which audibly and optically signals the occurrence of an alarm in the controller.

The sound signal is emitted directly from the device and from the receiving device, which can be placed at a distance of up to 100 meters in an open space, which is enough power to receive a signal between the ceilings of the building.
Thanks to this, the operator does not have to be constantly close to the controller and will be informed of any alarms reported by the controller.

TERMO8G thermometers equipped with the PAMEL RS485 interface can work with a PC (requires purchase of a PUSB receiver).
Two-wire transmission operates at a distance of up to 1000m.
In the program as well as in the device, the user can use the latest temperature reduction or increase alarm function.

TERMO8G can also be equipped with a USB interface.

TERMO8G thermometers can be equipped with a built-in battery that allows you to work without a power source for up to 100 hours.
The battery is made in LI-ION technology which means no effects of rapid capacity reduction, the possibility of any recharging and very high efficiency.
In addition to the battery, the device has a charger that allows efficient battery charging.

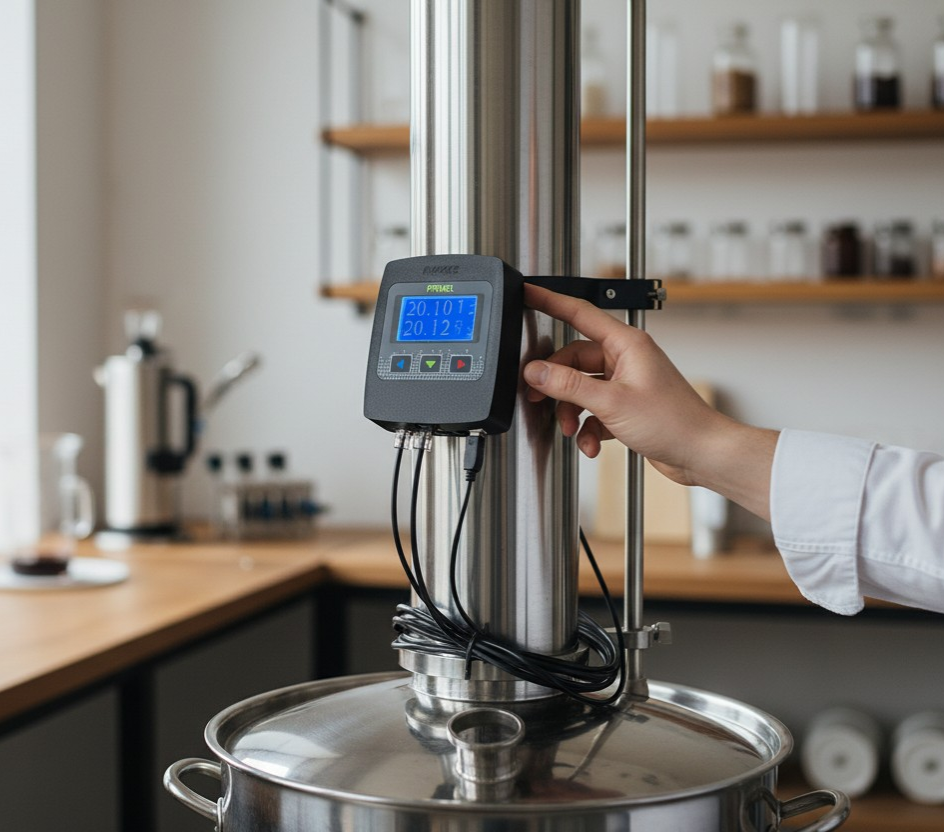

Also useful in home greenhouses.

Advantages
Easy assembly
Large LCD display
Measurement of up to 8 temperatures
Audible alarms
Self calibration of sensors
Ease of use

Warranty
60 months

Technical data
Supply voltage: 5V (power supply, charger, USB)
Measurement accuracy of 0.025 degrees
Alarm adjustment 0.02 0.05 0.10 or 0.5 degree adjustable by the user
Up to 4 RJ-45 probes
Depending on the number of connected probes, it displays 1,2, 4 or 8 temperatures.

Probes must be purchased as options or as separate products.

The lack of probes in the set is due to different types of probes.

In the option with the RS485 interface, PAMEL cooperates with the PC program TERMO4_USB (via the PUSB module).

The PUSB module is not included in the set because it can work with many devices.
